| Quantity | Unit Price | |
|---|---|---|
| 1 - 1 sets | $79300.00 | |
| 2 - 4 sets | $73723.00 | -7% |
| 5 - 9 sets | $68146.00 | -14% |
| 10+ sets | $62400.00 | -21% Best Price |
| dimension(l*w*h) | 5X1.7X2.4M |
| plastic type | Hips, PVC, PS, PP, PET |
| production speed(cycles/min) | 30.0cycles/min |
| voltage | 380V/50HZ |
| product type | Plastic Cup |
| warranty | 1 Year |
| key selling points | Easy To Operate, Famous brand PLC, Remote Control, Long Service Life, High Productivity, Accurate Temperature Control, Competitive Price, Low Noise Level, Patented Product, Flexible Manufacturing, Famous Brand Motor, Multifunctional, Low Maintenance Cost, High-Accuracy, Eco-Friendly, High Safety Level, High Rigidity, Multi Color, Automatic, Energy Saving, Other, Digital |
| core components | PLC, Bearing, Gearbox, Engine, Gear, Pump |
| machinery test report | Provided |
| video outgoing-inspection | Provided |
| forming width (mm) | 320 |
| forming length (mm) | 780 |
| place of origin | Zhejiang, China |
| weight (t) | 8 |
| max.forming height(mm) | 180 |
| air pressure(mpa) | 0.8 |
| sheet thickness(mm) | 0.2 - 2.5 mm |
| heating power (kw) | 50 |
| air comsumption(l/min) | 1800 |
| water comsumption(l/min) | 700 |
| brand name | Sinoplast |
| power(kw) | 50 kW |

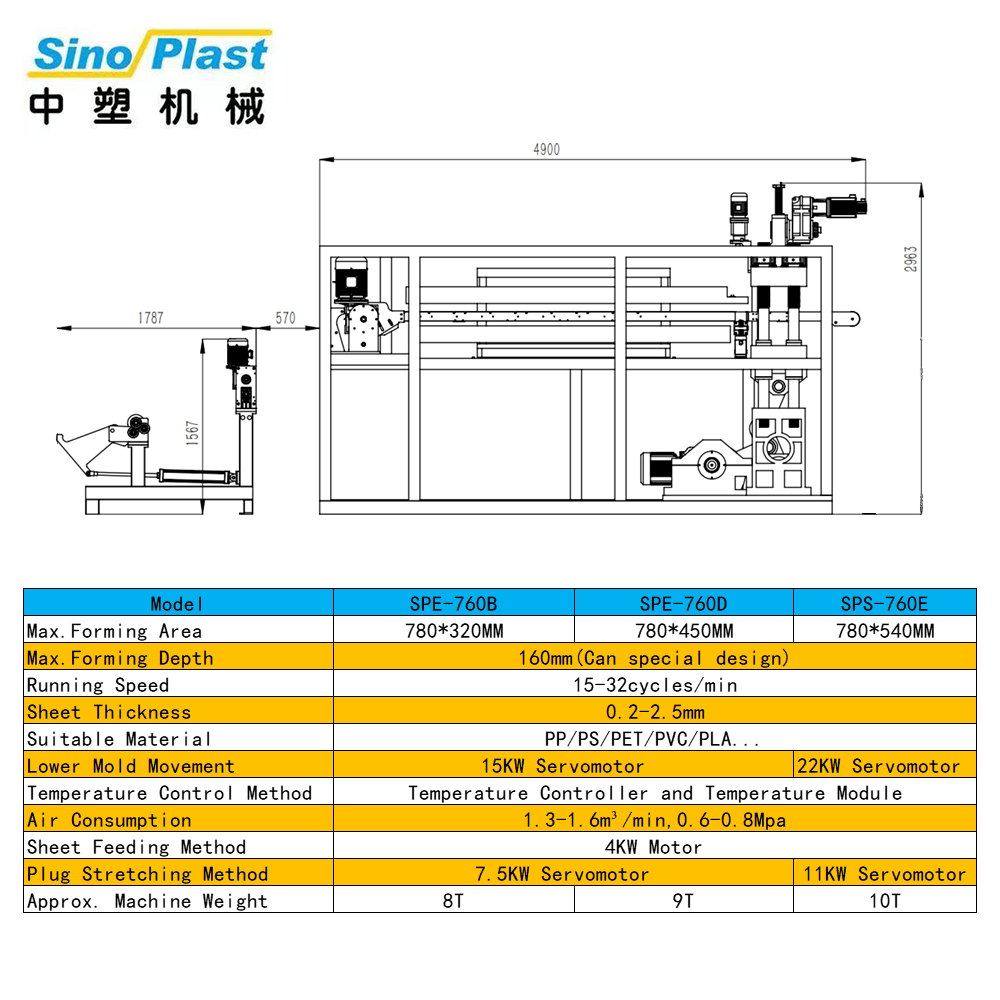

| Product Name | SPB-760 Automatic Plastic Cup Thermoforming Machine |
| Suitable material | PP, PS, PET, PVC, PLA |
| Max. Forming Area | 780*320mm |
| Sheet Thickness | 0.20-2.5 mm |
| Weight | 8T |
| Power | 50KW |
| Max. Forming Depth | 160mm (can special design) |
| Speed | 15-32cycles/min |
| Packaging and delivery | |
| Selling Units | Single item |
