| Quantity | Unit Price | |
|---|---|---|
| 1 - 1 pieces | $4765.80 | |
| 2 - 4 pieces | $4380.56 | -8% |
| 5 - 9 pieces | $3995.32 | -16% |
| 10+ pieces | $3598.40 | -24% Best Price |
| Machine Type | CNC Router |

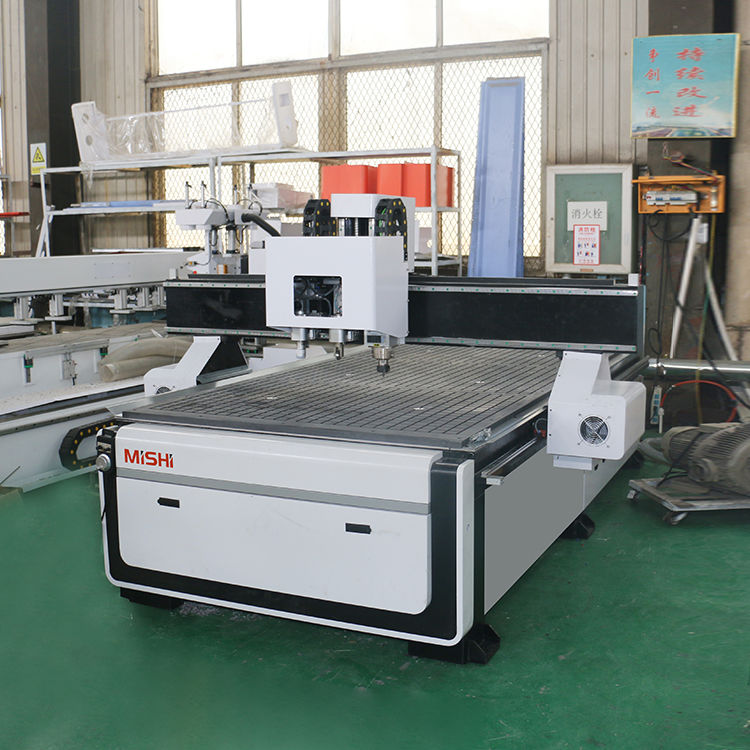

| Item | Oscillating Knife CNC Router |
| Product Name | Oscillatory Knife Cutting Machine |
| CNC or Not | CNC |
| Number of Axes | 3 |
| No. of Spindles | Single |
| Voltage | 220V / 380V |
| Warranty | 3 Years |
| Key Selling Points | Multifunctional |
| Core Components | Motor, Spindle, Control System |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Place of Origin | Shandong, China |
| Brand Name | Mingshi |
| Weight | 1000 kg |
| Range of Spindle Speed | 1 - 24000 rpm |
| Positioning Accuracy | 0.02 mm |
| Repeatability (X/Y/Z) | 0.02 mm |
| Travel (X Axis) | 2000 mm |
| Travel (Y Axis) | 2500 mm |
| Spindle Motor Power | 3.2kw / 5.5kw / 6kw |
| Dimension (L*W*H) | 2200*2200*1300 mm |
| Accessory Type | Dust Collection |
| Application | Acrylic, MDF, Plastic, Fabric, Wood |
| Keywords | Oscillating Knife Blade Cutting Machine |
| Function | Spindle Cutting + Saw Blade Cutting |
| Transmission | XY-axis: Rack, Z-axis: Ball Screw |
| Guide Rail | Taiwan Hiwin Square Guide Rail |
| Motor and Driver | Leashine Driver (Option: Delta) |
| Software | Ucancam / ArtCam / TYPE3 |
| Table Structure | Vacuum Table + Aluminum T-slot |
| Selling Units | Single Item |
| Single Package Size | 176 x 176 x 180 cm |
| Single Gross Weight | 1200.000 kg |
